GENERAL CHARACTERISTICS
1. Frequency Range
TX: 1.6 to 27.5 MHz, 100 Hz steps
RX: 0.1 to 29.99999 MHz, 10 Hz steps
2. Frequency Accuracy 10 Hz (after warm-up)
3. Communication System Simplex of semi-duplex
4. Class of Emission
J3E, H3E and J2B
When 2182 kHz is recalled by the [2182] key,
H3E is automatically selected.
5. Power Supply
24 VDC +30/-10 %, 15 A (150 W),
35 A (250 W) for TX, 2 A for RX
115/230 VAC with extra rectifier
TRANSMITTER CHARACTERISTICS
1. RF Output Power
150W (FS-1562-15), 250 W (FS-1562-25) at 50-ohm load
Reducible to 60 Wpep
2. Two-tone Alarm Generator
Built in as standard. Complies with SOLAS requirements.
ANTENNA COUPLER CHARACTERISTICS
1. Input Impedance 50 ohms
2. Antenna 7-30 m whip or wire
3. Tuning Speed 0.2 to 2 sec, typical
RECEIVER CHARACTERISTICS
1. Receiving System
Double-conversion super heterodyne
IF: 54.455 MHz and 455 kHz
2. Selectivity
J3E: 350 to 2700 Hz, H3E: ± 3 kHz, F1B: ± 150 Hz
3. Sensitivity (Input level to produce SINAD 20 dB)
J3E H3E F1B
0.3 -1.6 MHz (10Ω + 250PF) 25 dBμV 39 dBμV -
1.6 - 4 MHz (10Ω + 250PF) 16 dBμV 30 dBμV 6 dBμV
4 - 27.5 MHz (50 Ω) 3 dBμV - -7 dBμV
4. Scan Dwell time 1-99 sec where traffic is present
5. Audio Output 1 W (8 Ω built-in speaker)
5 W (4 Ω external speaker)
EQUIPMENT LIST
Standard

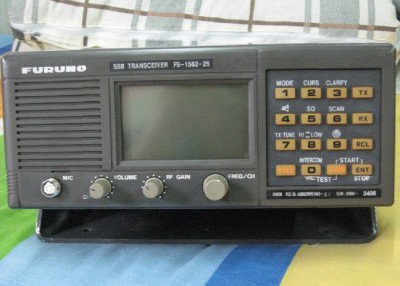

1. Transceiver unit
2. Telephone handset
3. Antenna coupler AT-1560 (FS-1562-15),
AT-1562-25 (FS-1562-25)
4. Power Amplifier Unit PA-2500 for FS-1562-25
Optional
1. Rectifier with changeover facility PR-300 for FS-1562-15
PR-850A for FS-1562-25
2. Distributor DB-120
